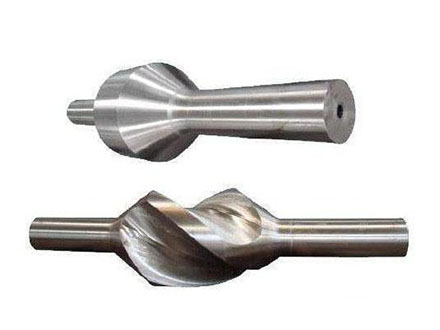

Integral non magnetic stabilizer are made from one solid forging of non magnetic steel. The material is high purity Chromium Manganese Austenitic stainless steel.
Oreqma has the capacity to produce Non Magnetic Stabilizer up to Crown OD 26”.
Mechanical Properties Magnetic Permeability
Tensile Strength: min 120KSI Max: 1.01
Yield Strength: min 100KSI Average: 1.005
Hardness: min 285HB
When ordering stabilizers, pls specify:
1. Type of Stabilizer (String or Near bit)
2. Crown OD / Hole Size
3. Fishing Neck OD and Length
4. Wall Contact Length
5. Blade Width
6. Tong Length
7. Angle from Crown to Neck
8. Overall Length
9. Type of Hard facing
10. Material (Steel or Non Mag)
